TURN-MILL MACHINING CENTER MC-SERIES

Description

• Hig­hest fle­xi­bi­lity in the con­fi­gu­ra­tion of high pre­cis­ion CNC-Tur­ning-Mil­ling-Dril­ling Centres

• Machi­ning of com­plex work­pie­ces in one set-up throught varia­ble machi­ning com­pon­ents from the modu­lar system

• Com­plete work pre­pa­ra­tion pro­ces­ses from manu­fac­tu­ring plan­ning to main­tance through intel­li­gent hard and soft­ware tools


Machine components

Uni­ver­sal Tur­ning-Mil­ling-Dril­ling Unit

Tur­ning-Mil­ling-Dril­ling Head and Exter­nal Mil­ling Disc

Tur­ning-Mil­ling-Dril­ling Head an Tool Turret

Com­bi­na­tion Tur­ning-Mil­ling-Dril­ling Unit and Bor­ing Bar Slide

Bor­ing Bar Maga­zine with auto­ma­tic Bor­ing Bar Changer

Com­bi­na­tion Tur­ning-Mil­ling-Dril­ling Unit and Heavy Duty Mil­ling Unit

Com­bi­na­tion Tur­ning-Mil­ling-Dril­ling Unit and Dril­ling Quill

Equi­va­lent Coun­ter Spindle

Tur­ning-Mil­ling-Dril­ling Head for Heavy Duty Machining

Sepa­rate Tool Maga­zine for Second Slide

Modu­lar Tool Magazine

Machi­ning with u‑axis

Auto­ma­tic Tool Change (ATC) for Sys­tem Bor­ing Bars

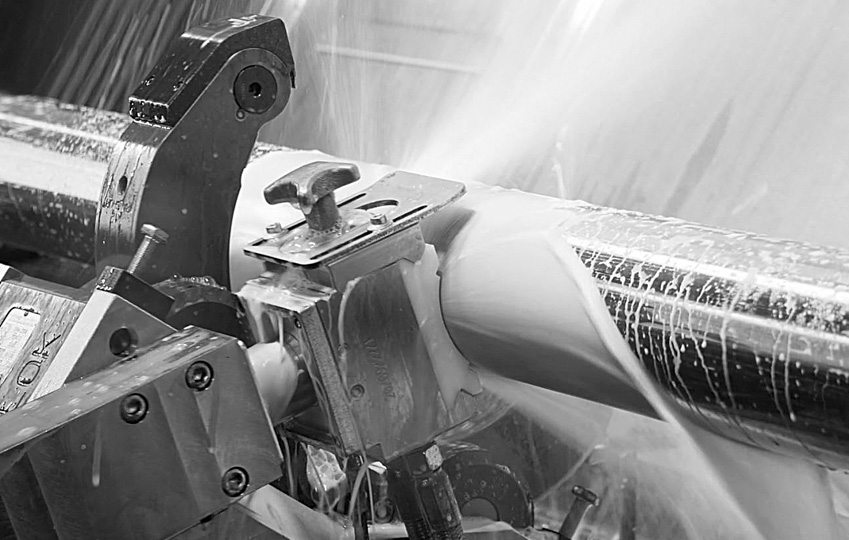

Hydro­sta­tic Work­piece Support

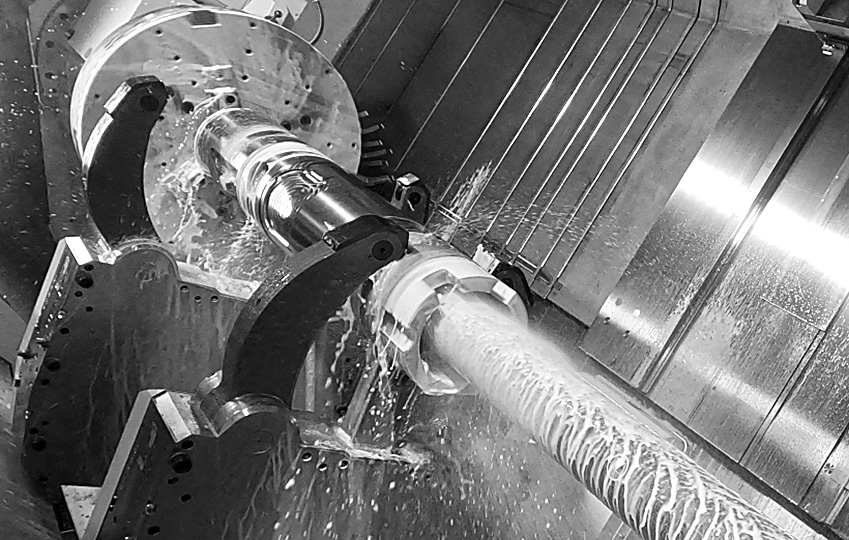

High-pres­sure coo­lant (HPC) up to 150 bar

3‑Piece Pick up Maga­zin for Hydro­doc Bor­ing Bars

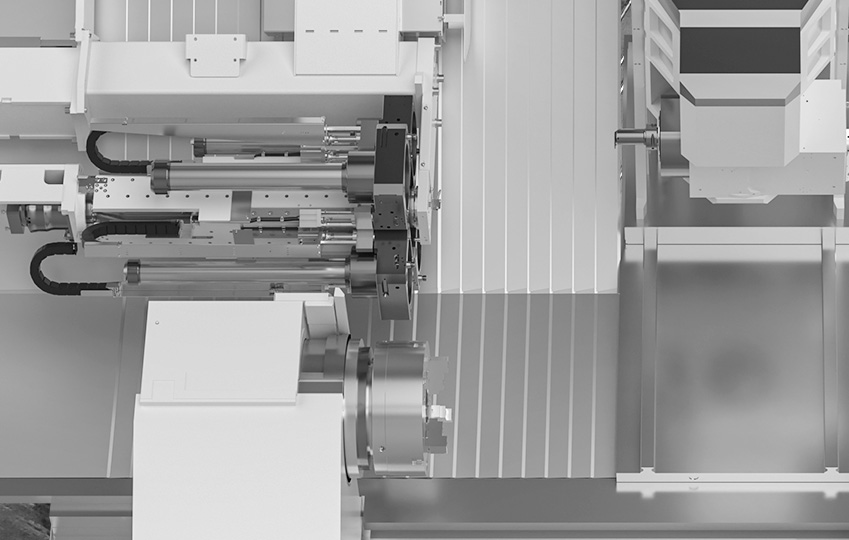

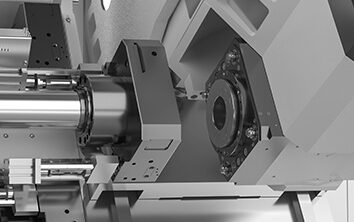

Hydro­dock Interface

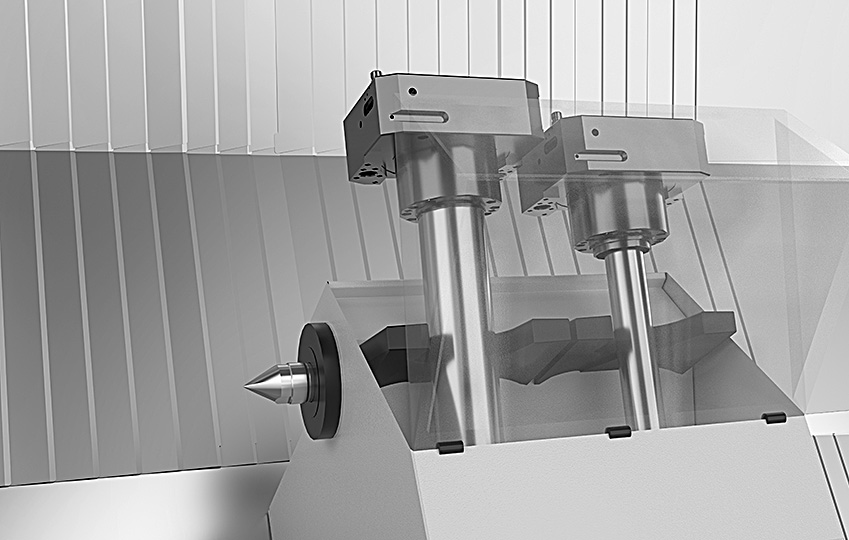

Spe­cial Tail­stock with a Bor­ing Bar Maga­zine in the working area

Part Mea­su­ring at TURN-MILL unit

Grin­ding unit

Software components

• CAM solu­ti­ons for NC programming

• »Vir­tual Machine« for col­li­sion avo­id­ance and NC pro­gram optimization

• Real­time col­li­sion avo­id­ance with Pro­tec­tion-Con­trol-Sys­tem (PCS®-online)

• Pro­cess monitoring

• Online dia­gno­sis with Con­di­tion Monitoring
